ZY Cyclone separators

ZY Cyclone separators

ZY Cyclone separators

Features

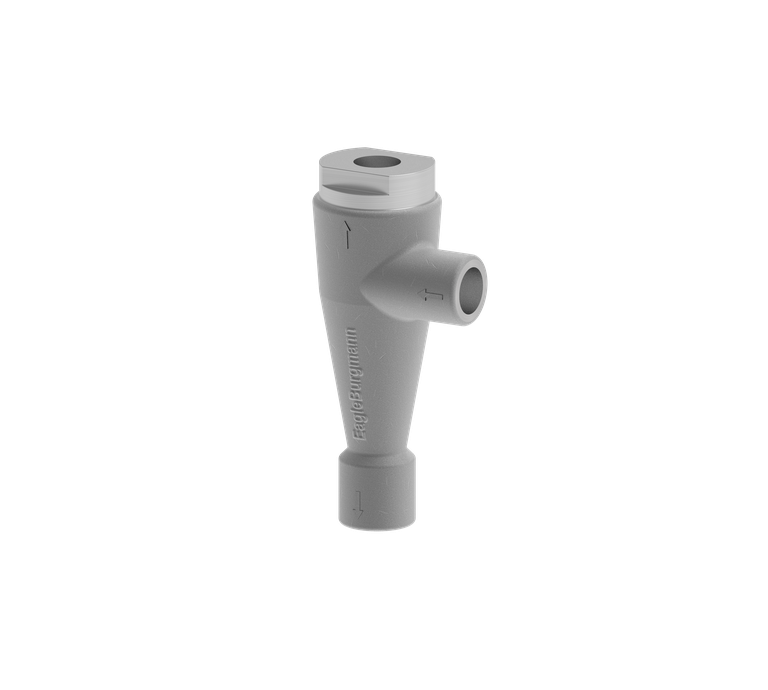

The ZY range (shown: ZY62) is available in three basic versions:
ZY61: cyclone separator with replaceable insert made of elastomer or ceramic
ZY62: cast version of the cyclone separator
ZY203: cyclone separator for high flow rates and high pressures

Circulation in accordance with API 682 / ISO 21049: Plan 31, API Plan 41

Advantages

  • Contaminations are automatically conveyed to the suction nozzle of the pump: maintenance-free mode of operation for guaranteed reliability
  • High filtration efficiency
  • Wide range of products for the optimum solution for every application
  • ZY203: for operating pressures of up to 200 bar
  • ZY61, ZY203 optional in block-type design with integrated flange connections: low space requirements because of compact design

Functional description

Cyclone separators of the ZY range are used to clean mainly aqueous liquids containing dirt and solids (e.g. in circulation systems of sewage, sludge or pipeline pumps). The best possible filtration efficiency is achieved when the specific weight of the solids is much higher than that of the carrier liquid (recommended by API 682 4th edition: at least double), and when the differential pressure is as large as possible within the permissible pressure range (min. 1.7 bar in accordance with API 682). The viscosity of the medium is also a factor that needs to be taken into account.



Product variants

Description Insert Allowable pressure1) Allowable temperature1) Process
connections
Connecting size Housing/
cover
O-Ring
ZY61 Ceramic 64 bar
(928 PSI)
125 °C
(257 °F)
G, R, NPT,
Flange
1/2" 1.4571 Viton®
ZY61 Elastomer 64 bar
(928 PSI)
60 °C
(140 °F)
G, R, NPT,
Flange
1/2" 1.4571 Viton®
ZY61
block-type design
Ceramic 42 bar
(609 PSI)
93 °C
(199 °F)
Flange 1/2", 3/4" 1.4462 Viton®
ZY62 64 bar
(928 PSI)
125 °C
(257 °F)
G, R, NPT,
Flange
1/2", 3/4" 1.4408 Viton®
ZY203 200 bar
(2,901 PSI)
125 °C
(257 °F)
G, R, NPT,
Flange
3/4", 1" 1.4571 Viton®
ZY203
block-type design
233 bar
(3,379 PSI)
50 °C
(122 °F)
Flange 3/4" 1.4404 Viton®

Other Designs on request.
1) Max. values depend on version.


ZY61
Item Description
1 Housing
2 Cover
3 Insert
4 O-Ring

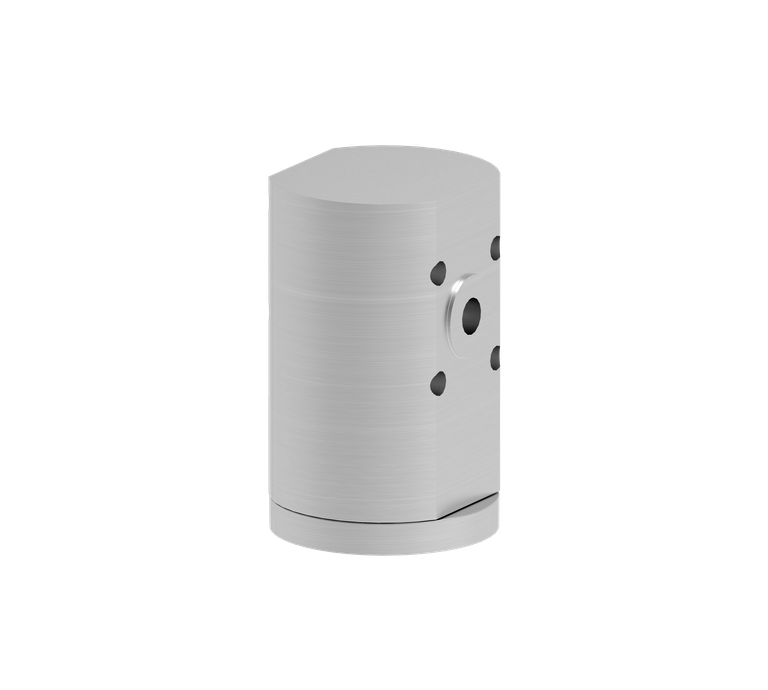

ZY61S
block-type design, with integrated flange

Item Description
1 Housing
2 Cover
3 Insert
4 O-Ring
ZY62

Item Description
1 Housing
2 Cover
4 O-Ring
ZY203

Item Description
1 Housing
2 Cover
4 O-Ring
ZY203 with flange connections

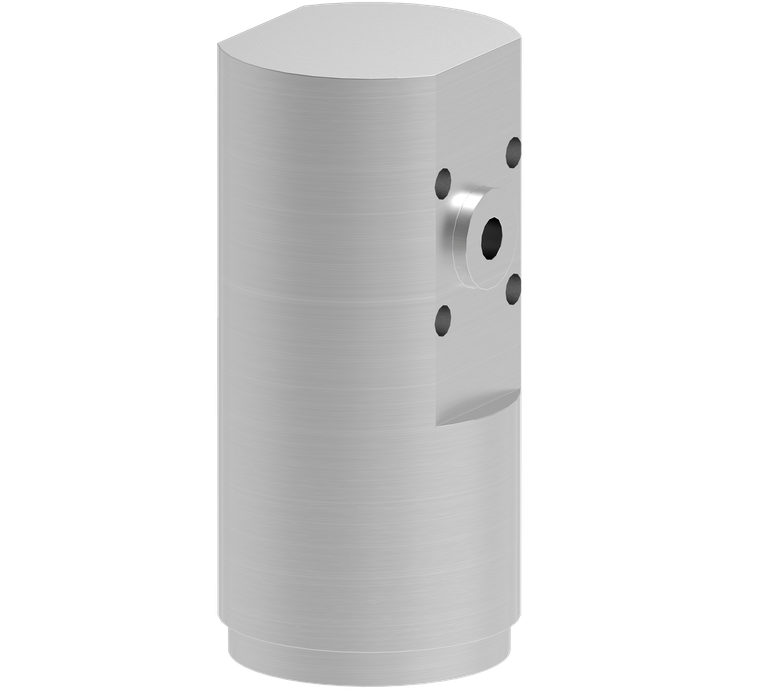

ZY203S
block-type design with integrated flange

Item Description
1 Housing
2 Cover
4 O-Ring
