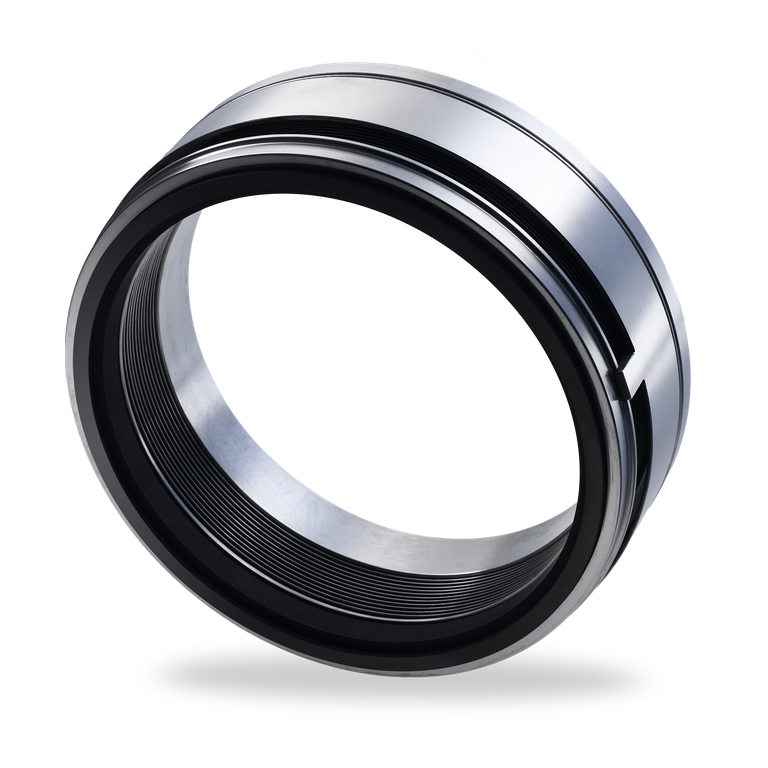

MFL65

MFL65 For a larger view, please mouseover the image.
For a larger view, please mouseover the image.
Item Part
DIN 24250
Description

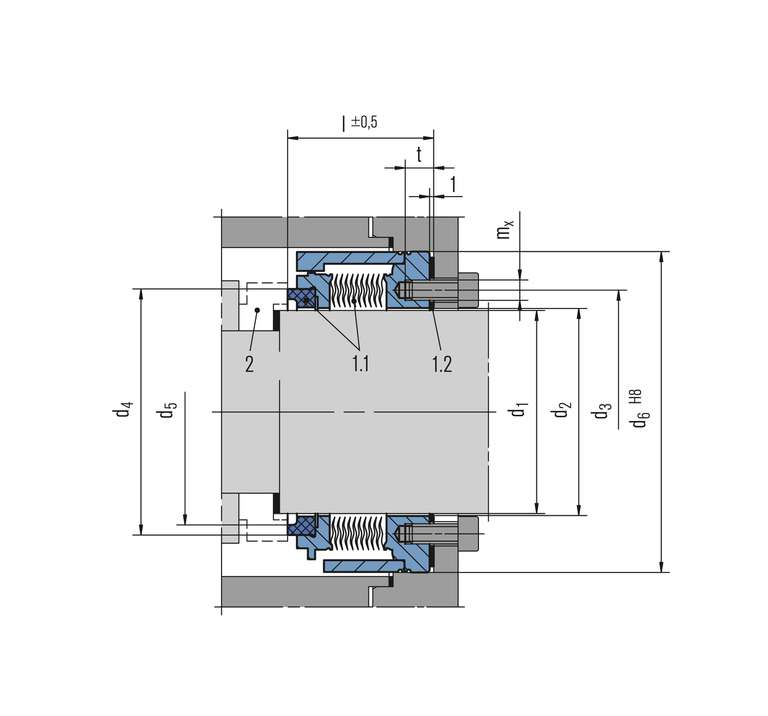

1.1 472 and 481 Seal face
and bellows unit
1.2 400.1 Flat gasket
2 475 Seat
  • Stationary bellows
  • Single Seal
  • Balanced
  • Independent of direction of rotation
  • For high temperature
  • High sliding velocities
  • No elastomer secondary seals
Shaft diameter: d1 = 16 ... 100 mm (0.63" ... 4"), (>100 mm on request)
Externally pressurized: p1 = 25 bar (363 PSI), (higher pressure possible, please inquire)

Internally pressurized:
p1 <120 °C (248 °F) 10 bar (145 PSI),
p1 <220 °C (428 °F) 5 bar (72 PSI),
p1 <400 °C (752 °F) 3 bar (44 PSI)
Stationary seat lock necessary.

Temperature:
t = -20 °C ... 400 °C (-4 °F ... +752 °F)
Sliding velocity: vg = 50 m/s (165 ft/s)
Bellows:
Inconel® 718 (M6), Hastelloy® C-276 (M5)
Seal face:
Carbon graphite antimony impregnated (A), Silicon carbide (Q12)
Seat:
Silicon carbide (Q1), Special cast CrMo steel (S)
Metal parts:
Duplex (G1), Carpenter® 42 (T4), Hastelloy® C-4 (M)
  • Process industry
  • Oil and gas industry
  • Refining technology
  • Petrochemical industry
  • Chemical industry
  • Hot media
  • High sliding velocities
  • Pumps
  • Special rotating equipment
