LP-D

LP-D For a larger view, please mouseover the image.
For a larger view, please mouseover the image.

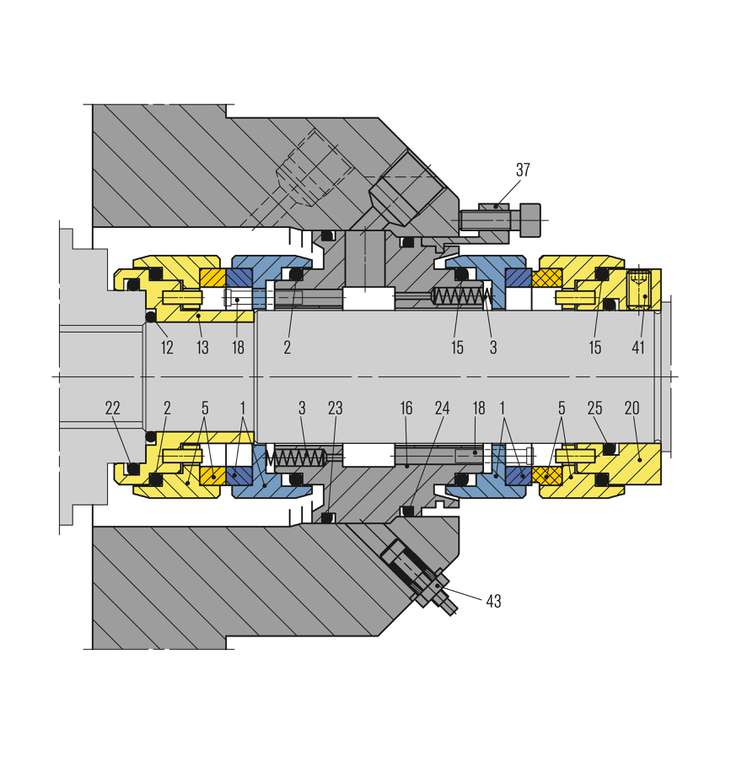

Item Designation
1 Seal face
5 Seat
13 Sleeve
16 Housing
18 Pin
37 Locking fixture
2, 12, 15, 22, 23, 24, 25 O-Ring
43 Plug

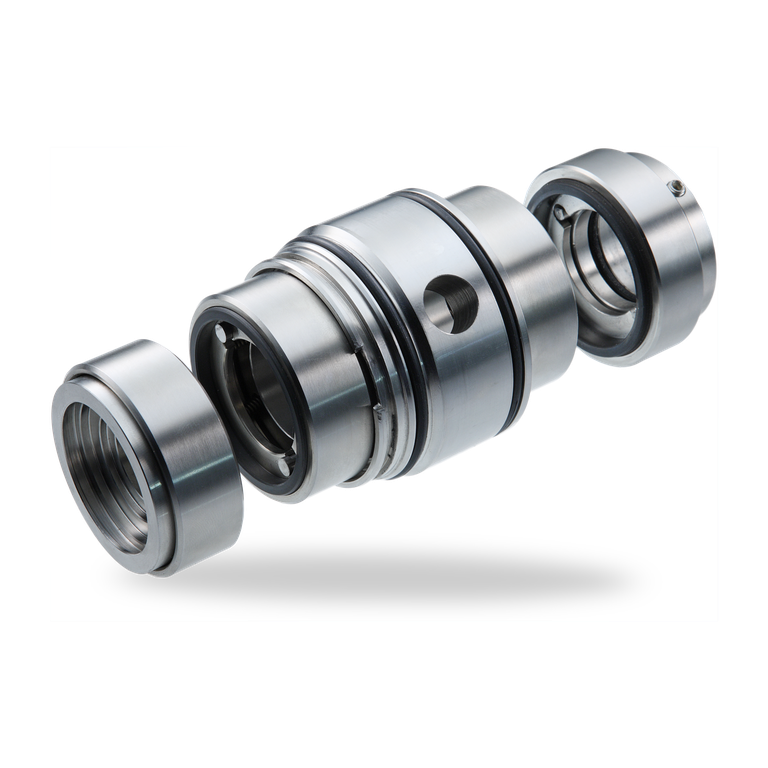

LP-D-UP Dual seal
Ready-fitted for Ahlstar UP A MS21 range of pumps, bearing unit A1-A6

  • Integrated seal for Sulzer A pumps
  • Dual seal, balanced
  • Semi cartridge unit
  • Independent of direction of rotation
  • Double pressure balanced
  • Internal barrier fluid circulation
  • Static springs on both sides
  • No dynamic O-Ring on shaft
  • Rugged design
  • Shrink-fitted seal faces
  • Seal faces have a large clearance to the shaft
  • Wear part cost minimized
  • Optimized design for Non-Flow use
  • Individually integrated to equipment for the best sealing result
  • Straightforward and easy installation
  • Static springs on both face sides reduces influence of misalignment
  • No damage of the shaft by dynamically loaded O-Rings
  • Extended service life due to rugged design
  • No brittle parts in contact with torque transmission pins
  • Seal faces protected by strong steel parts and a large radial clearance
Temperature:
t = -20 °C ... +140 °C (-4 °F ... +284 °F)
(180 °C (356 °F) with Kalrez® elastomers)
Pressure:
p1 ... 25 bar (363 PSI), p3 <12 bar (174 PSI)
Sliding velocity: vg ... 20 m/s (66 ft/s)
Stock content: <8 %

Non-flow operation:
Temperature:
t = +5 °C ... +100 °C (+41 °F ... +212 °F)
Pressure:
p1 max. 10 bar (145 PSI), p3 > p1
Sliding velocity: vg <10 m/s (33 ft/s)
Seal face: Silicon carbide (Q12), Carbon (A)
Secondary seals: FKM (V), EPDM (E), FFKM (K)
Metal parts: CrNiMo steel (G),
Grade 5A (4T), SMO 654 (4U)
  • Pulp and paper industry
  • Chemical industry
  • Clean, abrasive or corrosive liquids
  • Stocks of various kind
  • Applications where crystallization is a problem
  • Sulzer Ahlstar A (MS11) centrifugal pumps
  • Double, quench and single seals have the same wear parts on the prouduct side, reduces stock holding costs
  • The dual seal can also be used as single seal by removing the atmospheric seal parts
  • Can be used with pressurized buffer fluid or with quench
