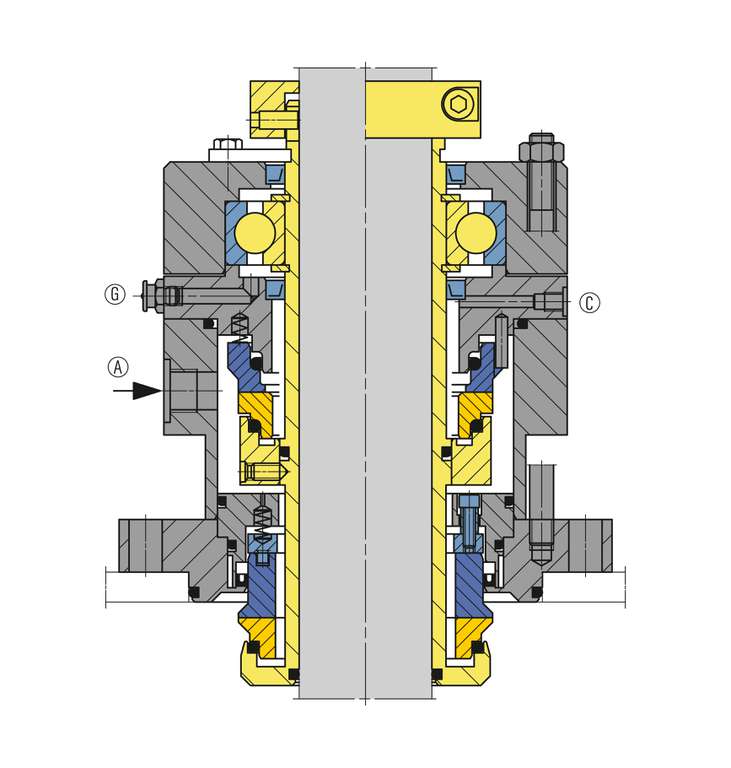

AGSR3(L)-D
Double seal (with floating bearing for the shaft) for sterile applications. The specific design free of dead spaces with polished surfaces on the product side meets the requirements for hygienic applications.

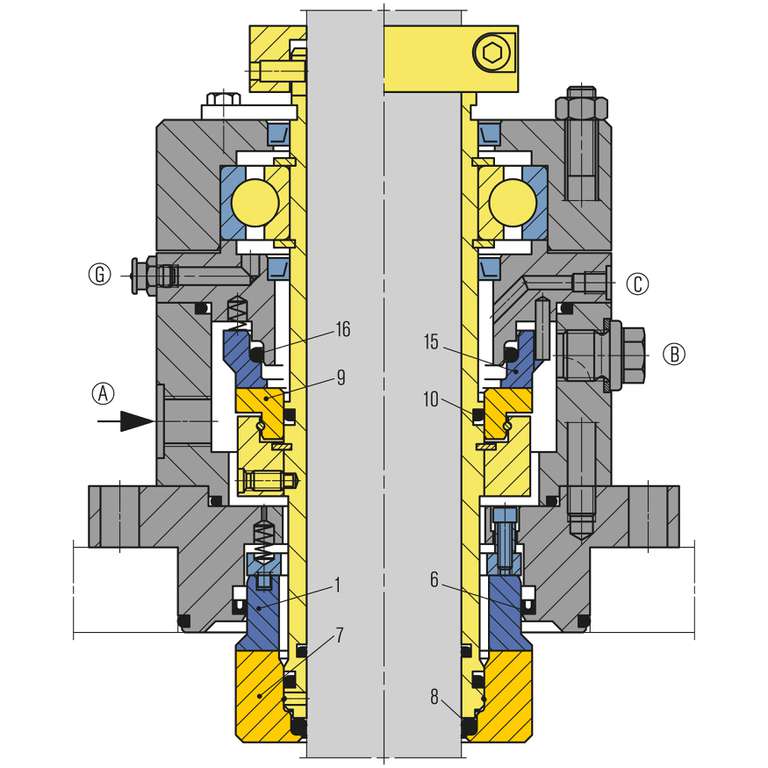

Item Description
1, 15 Seal face
6 Sealing ring
7, 9 Seat
8, 10, 16 O-Ring
  • For top, bottom and side entry drives
  • Double seal
  • Balanced
  • Stationary springs on product side
  • Independent of direction of rotation
  • Gas-lubricated
  • Cartridge unit
  • Ready-to-fit and factory-tested unit
  • Rotating seat at product side
  • Torque transmission by clamping ring for large axial movements
  • Non-contacting operation
  • No friction on the seal faces, no heat generated at the seal or in the medium
  • Sterile design available
  • ATEX certification on request
Shaft diameter:
d1 = 20 ... 200 mm (0.8" … 7.9")
Pressure:
p1 = Vakuum ... 6 bar (87 PSI),
Δp = min. 3 bar (44 PSI),
p3 = max. 9 bar (131 PSI)
Temperature:
t1 = 0 °C ... +200 °C
(+32 °F … +392 °F)
Sliding velocity: vg = 0 ... 5 m/s (0 ... 16 ft/s)*

* Higher velocities on request
Seal faces and seats: Silicon carbide, FDA conform
Secondary seals and metallic parts acc. to application and customers' requirement.
  • Chemical industry
  • Food and beverage industry
  • Pharmaceutical industry
  • Mixers
  • Dryers
  • Special rotating equipment
Options:
  • Flush
Gas supply by EagleBurgmann
GSS4015/A400-D0,
GSS4016/A250-D1 or GSS4016/A350-D1.

Note: To assure a sufficient supply of the mechanical seal, pressure at entry of the supply system must be min. 3 bar (44 PSI) above max. barrier pressure always.
